Shallot essential oil emulgel formulation and stability test using HPMC variations as an analgesic

Heru Nurcahyo; Sari Prabandari; Joko Santoso; Kusnadi Kusnadi

doi:10.51847/tNeYBKGg4w

Views: 1308 Downloads: 178

Shallot essential oil emulgel formulation and stability test using HPMC variations as an analgesic

Heru Nurcahyo^*✉ , Sari Prabandari , Joko Santoso , Kusnadi Kusnadi

Abstract

More than 70 percent of workers have musculoskeletal disorders (MSDs) and joint pain, which are characterized by abnormalities in the blood circulation system, muscles, tendons, joints, ligaments, bones, and nerves. More than 30 percent of workers choose to use herbal therapy as a complementary therapy to reduce the symptoms of MSDs. Shallot oil is one of the herbs that may be used as an analgesic, antipyretic, antioxidant, anti-inflammatory, and immunomodulator. The application of topical formulation in the form of emulgel is an interesting strategy and makes it easy to use. In this experimental method, shallots are dried and steam-distilled, S-allyl cysteine (SAC) is qualitatively tested using High-Performance Liquid Chromatography (HPLC), an emulgel is formulated using different forms of Hydroxy Propyl Methyl Cellulose (HPMC) and physical tests and cycling stability tests are conducted. The results of qualitative tests using HPLC on the SAC standard obtained a chromatogram with a retention time of 3.330 min and shallot essential oil at 3.223 min, where the chromatogram was in the same peak. The HPLC formulation produced stable organoleptic test results at concentrations of 2, 2.5, and 3%. However, formulation 2 yielded the best emulgel formulation based on the stability test using the cycling test method, where the results of the pH, spreadability, and viscosity tests remained stable until the sixth cycle test‎.

Keywords: Emulgel, Shallot, S-allyl cysteine, Hydroxy Propyl Methyl Cellulose

Introduction

More than 70 percent of workers have musculoskeletal disorders (MSDs) and joint pain [1]. They are characterized by abnormalities in the blood circulation system, muscles, tendons, joints, ligaments, bones, and nerves [2]. An investigation was carried out into the prevalence of MSDs caused by several things, like body mass index, namely overweight and obesity [3], significant imbalances of muscle and bone capacity [4], excessive workload [5, 6], accumulation of injuries [7], and poor posture at work [8].

More than 30 percent of workers choose to use herbal therapy as a complementary therapy to reduce the symptoms of MSDs [9]; doing a massage and providing topical traditional oils are options used to relieve pain and inflammation [10]; apart from that, it provides benefits in overcoming health problems [11], relieves symptoms [12], improves overall health [13], and has a cheaper perspective [14]. This is interesting to research and requires traditional products downstream to reduce the interference of these MSDs.

Research on Indonesian medicinal plants and herbal medicine has succeeded in identifying more than 4000 species [15], which are grouped as promotive and preventive measures, one of which is the shallot plant [15]. It can be used for muscle relaxation after activities. Based on in vivo research, shallot also has potential as an analgesic [16-18], antipyretic [19, 20], antioxidant [16, 21], and anti-inflammatory [16, 18, 21, 22].

Materials and Methods

Tools and materials

The tools used are HPLC (Thermo Scientific Ultimate 3000); analytical balance (Sojikyo); oven type FCD-2000 (Memmert); refrigerator (Sharp); homogenizer (IKA); emulsifying equipment commonly used in laboratories; glass tool (Pyrex); pH meter (Ohous); spreadability test; and viscometer (Brookfield LV).

The materials used are shallot essential oil (PT. Syailendra Bumi Investama), magnesium chloride (Pharma Lab), HPMC (PT Bratachem), methylparaben (PT Bratachem), propylparaben (PT Bratachem), oleum MP (PT Bratachem), and aquadest (PT Bratachem).

Method of research

Preparation of essential oils

Shallots (Allium ascalonikum L.) 20 kg were washed under running water, chopped, and dried in the oven at 40 °C for 72 hours. When dry, they were ground using a blender and distilled by steam [23, 24].

Qualitative test of S-allyl cysteine (SAC) by HPLC

The columns used are a C-18 column, UV detector, and pump. After the HPLC tool is turned on, the pump is started using the mobile phase acetonitrile: aquabidest (50:50 v/v) flowing for ± 20 minutes with a flow rate of 1 ml/minute at an emulsifying wavelength of 195 nm until a baseline is obtained, which indicates that the system is stable.

Emulgel formulation and manufacturing method

Emulgel formulations were divided into Formulation 1 (F1), Formulation 2 (F2), and Formulation 3 (F3), which can be seen in (Table 1).

Table 1. Emulgel formulation
Emulgel material	Formulation 1 (%)	Formulation 2 (%)	Formulation 3 (%)	Function
Onion Oil	5	5	5	Active substance
Magnesium Klorida	5	5	5	Active substance
HPMC	2	2,5	3	Emulgelling
Tween	1	1	1	Humektan, permeation enhancer
Methylparaben	0,18	0,18	0,18	Preservative
Propylparaben	0,02	0,02	0,02	Preservative
Ol MP	2	2	2	Aromatic
Aquadest ad	Ad100	Ad100	Ad100	Solvent

The formulation is made by weighing all the materials based on the calculation for the amount of emulgel formulation of 100 grams. Put the HPMC into the stirrer by heating at a temperature of 70 °C and a speed of 900 rpm until it is homogeneous to form mucilage; add magnesium chloride, which has been dissolved in water; add onion oil; add MP oleum, which has been mixed with nipagin and nipasol; and add tween 80. Stir until homogeneous to form an emulgel mass.

Emulgel stability test (Cycling test)

The cycling test is carried out starting on cycles 0-6. The emulgel formulation that will be tested was stored at a cold temperature of ± 4ºC for 12 hours in the refrigerator, removed, and stored at a temperature of ± 40ºC for 12 hours in the oven; this was calculated as 1 cycle [25].

Organoleptic test

The emulgel formulation that had been made was physically observed; including its color, odor, and texture.

Homogeneity test

Applying the emulgel formulation to a glass object performs homogeneity testing. This test aims to determine whether the emulgel formulation is homogeneous or not. This will be indicated by the absence of granules in the emulgel formulation.

Spreadability test

Test the spreadability by weighing 0.5 grams of the emulgel formulation in the middle of a round glass. The top round glass is weighed with a total weight of 250 grams for 1 minute. Then the diameter of the resulting emulgel was calculated.

pH Test

This test uses a pH meter that has been previously calibrated. The test is done by dipping the electrode in the emulgel formulation, where previously 0.5 grams of the emulgel formulation had been dissolved using 10 mL of distilled water.

Viscosity test

The viscosity test of the emulgel formulation is done using a tool in the form of a Brookfield LV Viscometer. Prepare spindle number 4, set the speed to 60 rpm, weigh 0.5 grams of emulgel dissolved in 10 mL of distilled water, and put the emulgel into the rotating spindle until the viscometer shows a constant number.

Data analysis

The analysis is done using Origin Pro 2017 with the double Y method and a histogram. The histogram was used to get an idea of the effect of increasing HPMC concentration on the stability test by observing the results of the viscosity.

Results and Discussion

The qualitative method for determining SAC using HPLC uses the acetonitrile mobile phase: aquabidest (50:50 v/v) with a flow rate of 1.0 ml/minute, and the stationary phase used is ODS, or Okta Desil Silica (C-18) [26]. This high-performance liquid chromatography condition was used to analyze the standard SAC solution and the levels of shallot essential oil samples. The results of the SAC standard at an injection concentration of 200 ppm obtained a chromatogram with a retention time of 3.330, as shown in (Figure 1). The sample's test results showed a retention time that was nearly identical to the SAC standard. Retention time is the time interval required by the solute from injection until it leaves the column and the signal is captured by the detector [27]. In measuring the retention time of shallot essential oil samples obtained with a concentration of 200 ppm, namely 3.223 in (Figure 2), this means that the samples used in the research contained SAC.

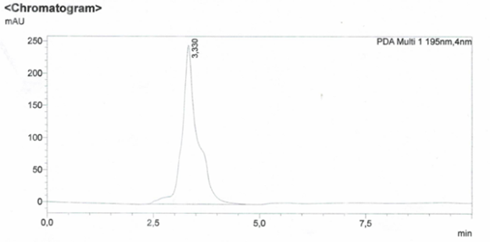

Figure 1. Chromatogram of the S-allyl cysteine (SAC) compound.

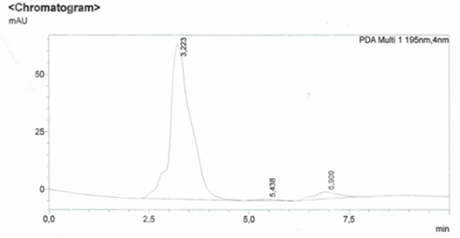

Figure 2. Chromatogram of shallot essential oil.

The cycling test method stability test was done by observing the physical stability parameters of the emulgel. The organoleptic test results show that the organoleptic observations from cycles 0 to 6 of the formulation did not change; the emulgel was stable whereas formulations 1, 2, and 3 showed a white, homogeneous, and aromatic smell. To show that the formulation must have a homogenous composition and that there are no discernible coarse grains, homogeneity emulgel's physical properties are tested [28]. There is no difference in texture; formulations 2 and 3 are slightly thicker than formulation 1, which is soft. This depends on HPMC; the thicker the emulgel, the higher its concentration [29-31] in (Table 2).

Table 2. The Results of the Organoleptic Test
Cycle		Color		Homogeneity				Smell
Cycle	F1	F2	F3	F1	F2	F3	F1	F2	F3
0	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
1	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
2	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
3	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
4	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
5	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic
6	white	white	white	Homogeneous	Homogeneous	Homogeneous	aromatic	aromatic	aromatic

Table 3. The Results of the Spreadability, pH Test, and Viscosity
Cycle	Spreadability Test (cm) Daya Sebar (Cm)			pH			Viscosity (Cps)
Cycle	F1	F2	F3	F1	F2	F3	F1	F2	F3
0	5,40 ±0,7	5,68 ±0,8	6,08 ±0,1	5,84 ±0,8	5,60 ±0,6	5,98 ±0,9	19516±30	19791±60	13206±60
1	5,25 ±0,6	5,70 ±0,8	4,83 ± 0,8	6,14 ±0,1	6,15 ±0,1	6,12 ±0,1	12718±60	12455±10	12908±30
2	5,27 ±0,6	6,17 ±0,1	6,60 ±0,6	6,08 ±0,8	6,13 ±0,1	6,14 ±0,1	19256±30	20405±10	20183±30
3	6,12 ±0,1	7,25 ±0,6	6,93 ±0,9	6,15 ±0,2	6,26 ±0,2	6,33 ±0,3	18953±30	19450±10	19213±30
4	5,73 ±0,8	7,25 ±0,6	6,83 ±0,8	6,34 ±0,3	6,45 ±0,4	6,49 ±0,4	18368±30	18345±10	18545±10
5	7,00 ±0,5	6,77 ±0,4	6,70 ±0,7	5,95 ±0,9	6,09 ±0,1	5,96 ±0,9	18248±30	23756±10	29091±60
6	6,77 ±0,3	6,77 ±0,4	6,57 ±0,6	6,25 ±0,2	6,36 ±0,3	6,32 ±0,3	19858±30	22610±10	23295±10

The pH test results on emulgel formulations 1, 2, and 3 fulfill the requirements; the data can be seen in (Table 3). The emulgel formulation of shallot essential oil is safe for the skin [32]. The pH requirements for a good emulgel formulation range from 4.5 to 6.5 [25, 33]. pH measurements are carried out to determine the potential level of product irritation on the skin (Latifah), where good products have a pH that is similar to the skin's pH. Skin irritation or dryness can result from products that are too acidic or alkaline [34, 35]. A pH that is too alkaline can cause scaly skin, especially when scrub formulations have physical properties that erode the surface of dead skin [36]. Therefore, the pH of cosmetic formulations should be tried to be the same or as close as possible to the physiological pH of the skin, namely 4.5–6.5 [37, 38].

Based on the emulgel viscosity test using a Brookfield Viscometer RVT equipped with spindle no. 4 with a speed of 60 RPM (rounds per minute), it shows that the viscosity of shallot emulgel formulation for all formulations fulfills the requirements with a good viscosity value, which is based on SNI for a range 6000–40,000 cps (SNI 16-4399-1996) [25, 39]. The viscosity test results can be seen in (Table 3).

Emulgel viscosity is an important property that determines the flow resistance of the emulgel formulation so that the emulgel can spread well on the skin surface [40]. The longer the emulgel's retention time in the workplace, the higher its viscosity [41]. Based on analysis using Origin Pro 2017 using the double Y method, the histogram in Figure 3 is obtained.

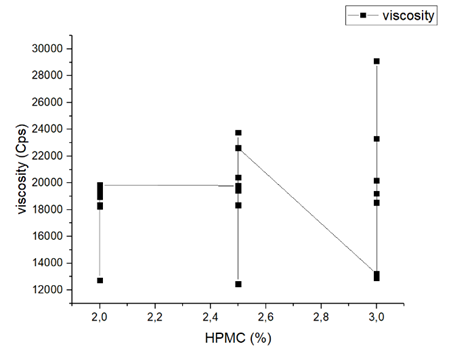

Figure 3. Histogram of the relationship between viscosity and HPMC concentration

The histogram shows that increasing the HMPC content will increase the viscosity value [42]. High concentrations of HPMC will increase the viscosity of the emulgel [43] and reduce the quality of the emulgel by reducing the spread of the emulgel on the skin [44]. In other studies, it was shown that increasing the HPMC content caused the emulgel to become darker and thicker in the form [45], increased viscosity [46], increased adhesive power [47], and decreased spreadability [48], but did not affect the homogeneity or pH of the emulgel [49, 50].

Conclusion

A chromatogram with a retention time of 3.330 minutes and a shallot essential oil retention time of 3.223 minutes, where the chromatogram was in the same peak, was obtained by qualitative tests using HPLC on SAC standards. The HPLC formulation resulted in stable organoleptic test results at concentrations of 2, 2.5, and 3%. Meanwhile, the cycling test method stability test showed that formulation 2 had the best emulgel formulation, with results from the pH, spreadability, and viscosity tests being stable until the sixth cycle of testing.

Acknowledgments: We would like to thank the Ministry of Research and Technology.

Conflict of interest: None

Financial support: We would like to thank the Ministry of Research and Technology, Higher Education for funding this research through the “P2V grant scheme” program 0520/D4/AL.04/2024.

Ethics statement: None

References

Jain P, Vaish R, Sharma RK, Mishra A, Jawre S, Mandal S, et al. Biochemical morphology of synovial fluid: way to lubrication. Entomol Appl Sci Lett. 2023;10(3):29-32.
Yosineba TP, Bahar E, Adnindya MR. Risiko ergonomi dan keluhan musculoskeletal disorders (MSDs) pada pengrajin tenun di Palembang. J Kedokt dan Kesehat Publ Ilm Fak Kedokt Univ Sriwij. 2020;7(1):60-6. doi:10.32539/jkk.v7i1.10699
Kesehatan JI, Husada S, Andini R, Dokter P, Kedokteran F. Index as a risk factor in musculoskeletal disorders artikel info artikel history. JIKSH, 2019;10(2):316-20. doi:10.35816/jiskh.v10i2.178
Aprianto B, Hidayatulloh AF, Zuchri FN, Seviana I, Amalia R. Faktor risiko penyebab Musculoskeletal disorders (MSDs) pada pekerja: a systematic review. J Kesehat Tambusai. 2021;2(2):16-25. doi:10.31004/jkt.v2i2.1767
Permatasari FL, Widajati N. Hubungan sikap kerja terhadap keluhan musculoskeletal pada pekerja home industry di Surabaya. Indones J Occup Saf Health. 2018;7(2):220-39. doi:10.20473/ijosh.v7i2.2018.230-239
Maulida M, Mayasari D, Rahmayani F. Pengaruh rasio kolesterol total terhadap high density lipoprotein (HDL) pada kejadian stroke iskemik the influence of total cholesterol ratio against high density lipoprotein (HDL) in the incidence of ischemic stroke. Majority. 2018;7(2):214-8.
Pramana AN, Cahyani MT. Analisis postur kerja dengan metode rapid entire body assessment (reba) dan keluhan subjektif muskuloskeletal pada petani bawang merah di probolinggo. Indones J Health Community. 2022;3(1):30-8. doi:10.31331/ijheco.v3i1.2067
Kumalapatni NW, Muliarta IM, Dinata IM. Gambaran keluhan muskuloskeletal dan analisis postur tubuh pada siswa pengguna kompoter di SMK “G” denpasar bali. J Med Udayana. 2020;9(2):15-20. Available from: https://ojs.unud.ac.id/index.php/eum/article/view/58812
Kavadar G, Demir SE, Aytekin E, Akbal Y. Use of traditional and complementary medicine for musculoskeletal diseases. Turkish J Med Sci. 2019;49(3):809-14. doi:10.3906/sag-1509-71
Bako E, Fehervari P, Garami A, Dembrovszky F, Gunther EE, Hegyi P, et al. Efficacy of topical essential oils in musculoskeletal disorders: systematic review and meta-analysis of randomized controlled trials. Pharmaceuticals. 2023;16(2):144. doi:10.3390/ph16020144
Liu C, Chen X, Wu S. The effect of massage therapy on pain after surgery: a comprehensive meta-analysis. Complement Ther Med. 2022;71:102892. doi:10.1016/j.ctim.2022.102892
Fuggle NR, Cooper C, Oreffo RO, Price AJ, Kaux JF, Maheu E, et al. Alternative and complementary therapies in osteoarthritis and cartilage repair. Aging Clin Exp Res. 2020;32:547-60. doi:10.1007/s40520-020-01515-1
Chiu HF, Venkatakrishnan K, Wang CK. The role of nutraceuticals as a complementary therapy against various neurodegenerative diseases: a mini-review. J Tradit Complement Med. 2020;10(5):434-9. doi:10.1016/j.jtcme.2020.03.008
Kong YC, Kimman M, Subramaniam S, Yip CH, Jan S, Aung S, et al. Out-of-pocket payments for complementary medicine following cancer and the effect on financial outcomes in middle-income countries in southeast Asia: a prospective cohort study. Lancet Glob Health. 2022;10(3):e416-28. doi:10.1016/S2214-109X(21)00595-7
Kristiana L, Paramita A, Maryani H, Andarwati P. Exploration of indonesian medicinal plants supporting physical fitness: analysis of research on medicinal plants and herbs 2012, 2015, and 2017. J Kefarmasian Indones. 2022;12(1):79-89.
Dimitry MY, Emmanuel PO, Edith DM, Armand AB, Nicolas NY. Antioxidant property, anti-inflammatory and analgesic effects of aqueous extracts of two onion bulbs varieties (Allium cepa L.). Clin Phytosci. 2021;7(1):49. doi:10.1186/s40816-021-00284-2
Aisah EN, Nurhidayat S. Kompres bawang merah efektif menurunkan nyeri sendi pada penderita asam urat (Gout Arthritis) di desa jonggol, jambon ponorogo. Dinamika Kesehat J Kebidanan dan Keperawatan. 2022;13(2). doi:10.33859/dksm.v13i2.867
Fazalina AA, Widyastuti D. Pengaruh kompres hangat herbal bawang terhadap penurunan skala nyeri sendi pada lansia: literature review. Borneo Stud Res. 2021;3(1):95-100. Available from: https://journals.umkt.ac.id/index.php/bsr/article/view/2335
Tuuk KP, Koamesah SM, Lidia K. Uji efek antipiretik ekstrak etanol bawang merah (Allium ascalonicum L.) Pada tikus galur sprague-dawley (Rattus norvegicus) yang diinduksi vaksin DPT-HB. Cendana Med J. 2020;8(2):138-46.
Willyanto JR, Hamid IS, Widodo T. Uji antipiretik patch ekstrak etanol bawang merah (Allium ascalonicum L.) dengan matriks chitosan dan Enhancer Tween-80. J Farm Sains dan Terap (J Pharmacy Sci Pract). 2018;5(1):53-8. Available from: http://jurnal.wima.ac.id/index.php/JFST/article/view/2056
Marefati N, Ghorani V, Shakeri F, Boskabady M, Kianian F, Rezaee R, et al. A review of anti-inflammatory, antioxidant, and immunomodulatory effects of Allium cepa and its main constituents. Pharma Biol. 2021;59(1):285-300. doi:10.1080/13880209.2021.1874028
Cantika MT, Tutik T, Nofita N. Anti-inflammatory activity test methanol extract red onion peel on male white mice. J Farm Malahayati. 2024;7(1):118-31. doi:10.33024/jfm.v7i1.9776
AdhinugrahaA QS, WidajatiB E, PalupiB ER. Invigoration improved quality and storability of true seed of shallot (Allium ascalonicum L.). J Trop Crop Sci. 2022;9(2).
Lestari RH, Sulistyaningsih E, Purwantoro A. The effect of drying and storage on the quality of shallot (Allium cepa L. Aggregatum group) bulbs. Ilmu Pertan (Agric Sci). 2019;3(3):117-26. Available from: http://journal.ugm, doi:10.22146/ipas.34203
Firmansyah D, Rizikiyan Y, Senja RY, Rohadi D, Indriaty S. Stabilitas gel the stability of gel containing ethanol extract of anredera cordifolia (Ten.) steenis with variation of carbophol 940. Med Sains J Ilm Kefarmasian. 2022;7(1):97-106.
Romsiah R, Ayu JG, Fatoni A. Penetapan kadar senyawa s-allyl cysteine (Sac) pada ekstrak solo black garlic secara kromatografi cair kinerja tinggi. J Pharm Sci. 2022;5(1):74-80. doi:10.36490/journal-jps.com.v5i1.101
Ali AH. High-performance liquid chromatography (HPLC): a review. Ann Adv Chem. 2022;6(1):010-20. doi:10.29328/journal.aac.1001026
Eryani MC, Siddiq HB, Rashati D, Safitri RK. Pengaruh variasi konsentrasi hpmc terhadap sifat fisik gel ekstrak kulit pisang agung semeru (Musa paradisiaca L.). J Ris Kefarmasian Indones. 2023;5(1):12-23. doi:10.33759/jrki.v5i1.320
Nursal FK, Rahmah AS. Formulation and development of grape seed oil (Vitis Vinifera L) Emulgel peel-off mask using gelling agent hydroxy propyl methyl cellulose (HPMC). InIOP Conference Series: Earth and Environmental Science 2021 Apr 1 (Vol. 755, No. 1, p. 012046). IOP Publishing. doi:10.1088/1755-1315/755/1/012046
Abdallah MH, Elghamry HA, Khalifa NE, Khojali WM, Khafagy ES, Shawky S, et al. Development and optimization of erythromycin loaded transethosomes cinnamon oil based emulgel for antimicrobial efficiency. Gels. 2023;9(2):137. doi:10.3390/gels9020137
Malavi S, Kumbhar P, Manjappa A, Chopade S, Patil O, Kataria U, et al. Topical emulgel: basic considerations in development and advanced research. Indian J Pharm Sci. 2022;84(5):1105-15. doi:10.36468/pharmaceutical-sciences.1005
Çelik H, Damar Z. Exploring nature's pharmacy: immune-boosting medicinal plants and their healing powers. J Biochem Technol. 2024;15(1):52-60.
Sukma NS, Cahyani DM, Revi YT, Febiany EC, Alifiyah F, Hariawan BS, et al. Pemilihan analgesik eksternal untuk mengatasi nyeri otot pada kuli angkut pusat grosir surabaya. J Farm Komunitas. 2020;7(1):23. doi:10.20473/jfk.v7i1.21660
Maharini M, Rismarika R, Yusnelti Y. Pengaruh konsentrasi PEG 400 sebagai kosurfaktan pada formulasi nanoemulsi minyak kepayang. Chempublish J. 2020;5(1):1-4. doi:10.22437/chp.v5i1.7604
Ningrum YD, Putri CN. UJI evaluasi dan uji aktivitas ekstrak daun asam jawa (Tamarindus indica L.). Med Sains J Ilm Kefarmasian. 2023;8(1):185-92. doi:10.37874/ms.v8i1.477
Bukke SPN, Gopalakrishnaiah T, Onohuean H, Rao PBB, Nandimandalam N, Babu MR, et al. Drug utilization analysis of analgesics and adjuvants used in pain management. Arch Pharm Pract. 2024;15(2):4-11.
Leny L, Rudang SN, Ginting I, Simanjuntak HT. Formulasi sediaan lulur krim dari ekstrak etanol daun pepaya (Carica papaya L.) Sebagai pelembab kulit. J Islam Pharm. 2023;8(1):22-6. doi:10.18860/jip.v8i1.20793
Putri LE, Karismatika J, Kasunaringati T, Prifita Sari A, Dwi Pratiwi E. Penghantaran baru berbasis SNEDDS (Self-nanoemulsifying drug delivery system) pada sediaan gel minyak essential rosemary sebagai antiaging. Maj Farmasetika. 2024;9(2):167. doi:10.24198/mfarmasetika.v9i2.51039
Chandra D, Rahmah R. Uji fisikokimia sediaan emulsi, gel, emulgel ekstrak etanol goji berry (Lycium barbarum L.). MEDFARM J Farm dan Kesehat. 2022;11(2):219-28. doi:10.48191/medfarm.v11i2.142
Ghebremedhin M, Seiffert S, Vilgis TA. Physics of agarose fluid gels: rheological properties and microstructure. Curr Res Food Sci. 2021;4:436-48. doi:10.1016/j.crfs.2021.06.003
Slavkova M, Tzankov B, Popova T, Voycheva C. Gel formulations for topical treatment of skin cancer: a review. Gels. 2023;9(5):352. doi:10.3390/gels9050352
Noval N, Rosyifa R, Annisa A. Effect of HPMC concentration variation as gelling agent on physical stability of formulation gel ethanol extract bundung plants (Actinuscirpus grossus). InProceedings of the First National Seminar Universitas Sari Mulia, NS-UNISM 2019, 23rd November 2019, Banjarmasin, South Kalimantan, Indonesia. 2020. doi:10.4108/eai.23-11-2019.2298326
Popa L, Ghica MV, Popescu R, Irimia T, Dinu-Pîrvu CE. Development and optimization of chitosan-hydroxypropyl methylcellulose in situ gelling systems for ophthalmic delivery of bupivacaine hydrochloride. Processes. 2021;9(10):1694. doi:10.3390/pr9101694
Hasriyani H, Presticasari H, Mundriyastutik Y. Pengaruh variasi konsentrasi HPMC terhadap kualitas mutu sediaan facial wash gel nanoperak hasil biosintesis ekstrak buah pepaya (Carica papaya L.). Indones J Farm. 2022;7(2):63-9. doi:10.26751/ijf.v7i2.1399
Nurlina S, Patmayuni D, Amelia K. Efektifitas gel ekstrak etanol daun serai wangi (Cymbopogon nardus L.) terhadap bakteri penyebab jerawat propionibacterium acnes. J Ilm Bakti Farm. 2022;7(2):25-32. doi:10.61685/jibf.v7i2.91
Indalifiany A, Zubaydah WS, Kasim ER. Formulasi spray gel ekstrak etanol batang etlingera rubroloba menggunakan HPMC sebagai gelling agent: formulation spray gel of etlingera rubroloba ethanolic extract using HPMC as gelling agent. J Sains Dan Kesehat. 2023;5(2):140-8. doi:10.25026/jsk.v5i2.1729
Febryana A, Dewi Cahyaningrum E. The effectiveness of onion compresses in nursing care with hyperthermic patients in wijaya kusuma, kardinah regional general hospital, tegal. Mahakam Nurs J. 2022;2(11):445-55.
Chittasupho C, Chaobankrang K, Sarawungkad A, Samee W, Singh S, Hemsuwimon K, et al. Antioxidant, anti-inflammatory and attenuating intracellular reactive oxygen species activities of Nicotiana tabacum var. Virginia leaf extract phytosomes and shape memory gel formulation. Gels. 2023;9(2):78. doi:10.3390/gels9020078
Hafidz KA, Puspitasari N, Yanuar A, Artha Y, Mun’im A. HMG-CoA Reductase inhibitory activity of Gnetum gnemon seed extract and identification of potential inhibitors for lowering cholesterol level. J Young Pharm. 2017;9(4):559-65. doi:10.5530/jyp.2017.9.107
Hijazi MA, El-Mallah A, Aboul-Ela M, Ellakany A. Evaluation of analgesic activity of papaver libanoticum extract in mice: involvement of opioids receptors. Evid Based Complement Alternat Med. 2017;2017:8935085. doi:10.1155/2017/8935085
