Abstract

The purpose of this research was to compare the traditional aqueous-LAS-suspension (AQS) with the two successful intranasal formulations that use the recently created antimigraine drug Lasmiditan (LAS) as nanoemulsion-based in situ gel (NEIG a and b), in order to determine its relative bioavailability (F-relative) via using rabbits. In this investigation, 18 male rabbits weighing 2.0 to 2.5 kg were employed. The dose of LAS was determined based on the body surface area (BSA) normalization method, which is equivalent to 216μl~4drops of NEIG a, NEIG b, and AQS, each containing 80 mg of LAS per milliliter given separately to the randomly selected rabbit using a parallel design for the study. Serial blood samples were taken out and subjected to drug analysis using the HPLC method previously developed and validated by L. Santosh Kumar. Primary pharmacokinetics parameters, including maximum drug concentration in plasma (C-max), time to reach C-max (T-max), and area under the concentration-time curve from time zero to affinity (AUCt0-∞) were calculated. The results showed that C-max, T-max, and AUC0- ∞ for NEIG a and NEIG b were 8066±242 ng/ml, 0.75±0.05 h, 19616.86±589 ng. h/ml, and 7975.67±239 ng/ml, 1.0±0.05 h, 17912.36±537 ng. h/ml respectively compared with the traditional AQS which is equal to 4181.09±125 ng/ml, 2±0.2 h, and 8852.27±266 ng. h/ml respectively. It was discovered that NEIG a and b had better Intranasal delivery of LAS and can significantly (p<0.05) affect its pharmacokinetic profile and improve its bioavailability by more than 2.5 folds when compared to oral AQS (as a control), according to the results of the pharmacokinetic investigation. The current investigations confirm the potential of LAS as NEIG a and b to increase F, establishing them as a promising intranasal new formula with a faster onset of action and greater bioavailability than the oral dosage form (AQS)‎.

Keywords: Bioavailability study, Nanoemulsion-based in situ gel (NEIG), Lasmiditan, C-max, T-max



In vivo research plan for pharmacokinetics study

It was conducted according to the institutional guidelines of the Animal Ethics Committee of the College of Pharmacy at the University of Baghdad. During the collection of blood samples, 6- male, white albino rabbits weighing 2.0-2.5 kg were captured in a rabbit hutch. Afterward, a table was held in a horizontal position with the rabbits placed on it. The oral and nasal dosages for rabbits were estimated, and the animal received a comparable dose of LAS. BSA normalization method and the human equivalent dose (HED) of pharmaceuticals including the species (Km) factor (body weight in kg divided by BSA in m²) were used to calculate the animal nasal and oral doses for the rabbit as follows [20-22]:

HED (mg)=(Animal Km/ Human Km)×Animal Dose(mg)

(1)

LAS single daily dose is advised to be (0.28 mg/kg for adults), and the values of Km were 37 and 12 for adult humans and rabbits respectively [23, 24].

Hence, the LAS dose for rabbits based on the BSA normalization method was 1.72 mg and reached 17.26 mg after multiplying by 10 (safety factor) [25].

18 albino male rabbits weighing between 2 and 2.5 kg were employed in the in vivo study. Based on the results of the in vitro and ex vivo studies, NEIG a and b were selected for the in vivo examination together with the AQS. Before the experiment began, the rabbits fasted for 24 hours. They were then divided into three groups, each with six rabbits. At a dosage of 0.863 mg/kg, Group I received LAS as AQS (reference). Group II received NEIG-a intranasally at a dosage of 0.863 mg/kg~4 drops as well as group III received NEIG-b intranasally at the same dose.  2ml blood samples were collected in EDTA tubes before the medication was administered (control sample), and then again at 0.25, 0.5,0.75, 1.0, 2.0, 3.0, 5.0, 7.0, 12, and 19 h after the drug was administered, then centrifuged [26, 27]. Prior to analysis utilizing the HPLC technique previously established and confirmed by L. Santosh Kumar, samples were kept at -20C° [28].

Parameters involved in pharmacokinetics

The pharmacokinetics of LAS was analyzed in a non-compartmental fashion. Using the plasma concentration-time curve (Cp versus T curve), we were able to calculate C max and T max following oral and intranasal delivery. T_0.5 is calculated by dividing the value of Ln 2 over Ke and the last is predicted from the slope of the straight section of the terminal phase (where the slope is equal to - Ke/2.303) [29, 30]. Extrapolation of the area to affinity (AUC t₀-_∞) was estimated by adding the last measured Cp divided by Ke to the value of AUC t _0-19 according to the following Eq. 2 [31]. This was done for each individual rabbit by calculating the area under the Cp-time curve from time 0-19 h (AUC t _0-19).

AUC0−α = AUC0−19 + [Clast / Ke]

(2)

Where; Cp 19 is the concentration of LAS after 19 h.

 Eq. 3 was used to determine F relative [32, 33]:

Frelative=(AUC NEIG2 /AUC oral × Dose oral /Dose NEIG2)×100

(3)

Statistical analysis

One-way analysis of variance (ANOVA) was used to compare the results of pharmacokinetics parameters to determine whether or not there were statistically significant differences between groups when comparing means; p-values were considered significant at a level of (P< 0.05), and non-significant at a level of (p > 0.05).

Results and Discussion

In vivo pharmacokinetics study

A reproducible, sensitive, and rapid HPLC method was used to determine the concentration of LAS in rabbit blood [34, 35]. Figure 1 shows the retention time and peak chromatograms of LAS (standard solution), hydrochlorothiazide (internal standard solution), and plasma sample(control) to be equal to 2.8, 6.08, and 4.33min respectively. The chromatographic conditions were developed and validated previously by L. Santosh Kumar [28].

a)

b)

c)

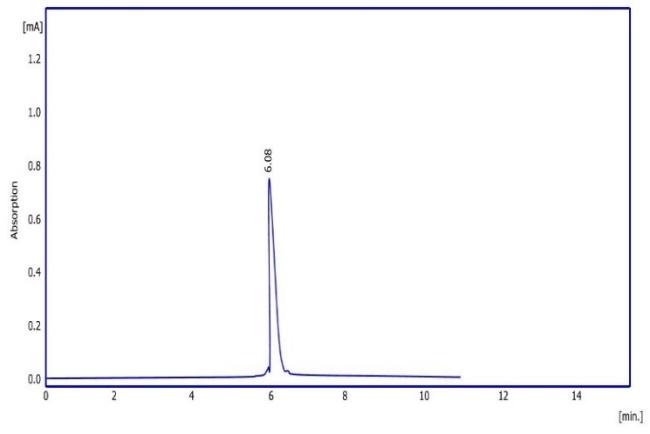

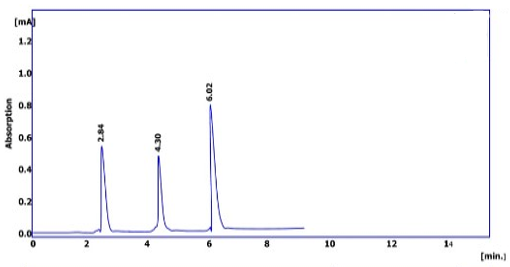

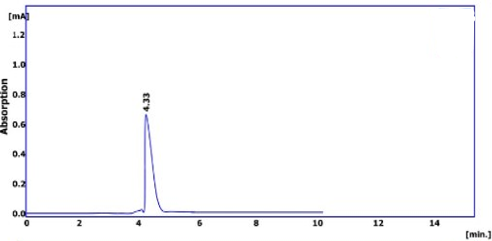

Figure 1. Representative HPLC chromatograms of standard, internal standard, and control plasma samples as a, b, and c respectively

Figures 2a-2c represents the chromatograms of blank and test plasma samples, It is clear that the peaks were completely separated, and there is no interaction or overlap.

a)

b)

c)

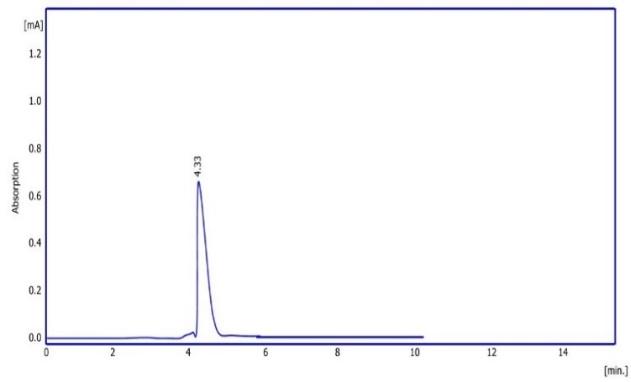

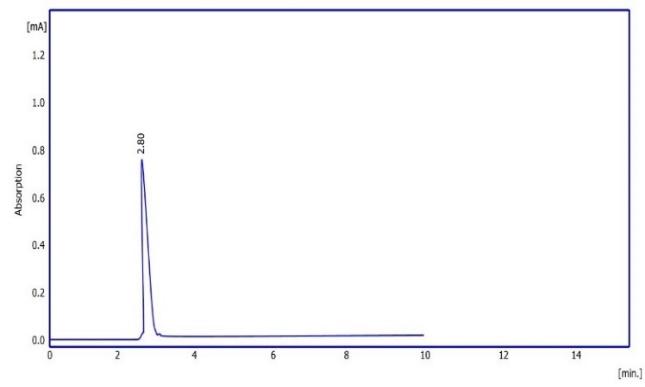

Figure 2. Chromatograms plasma sample. a) Blank sample (before administration of drug -LAS), b) first sample at 0.25h, and c) plasma sample at 19 h (last one).

The calibration curve of LAS in plasma (spiked plasma sample) was represented in Figure 3, a straight line with high regression coefficient (R²= 0.9999) was obtained by plotting the area under the peak of standard/internal standard versus the concentration, this indicates that the calibration curve obeys Beer’s law within the range of concentration used [36, 37].

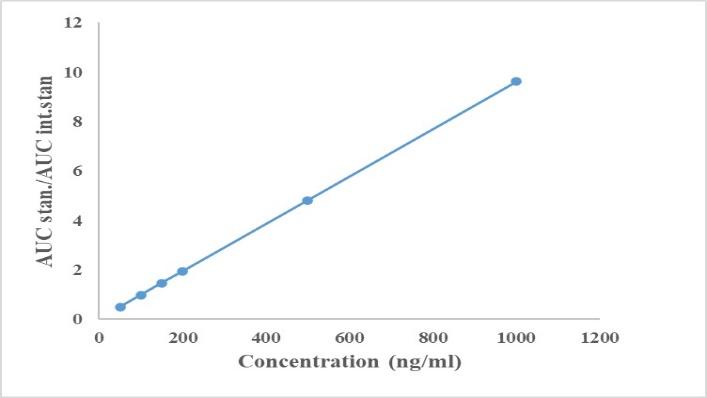

Figure 3. Calibration curve of LAS in plasma by HPLC method

Table 2 illustrates the arithmetic mean and standard deviation values of plasma drug concentration (ng/ml) of LAS (Mean Cp) at the selected time intervals for 18 rabbits having different weights (2-2.5kg) and every 6 rabbits randomly receiving a single dose of LAS (17.26 mg) as traditional AQS and the other two groups each 6 rabbits randomly receiving a single intranasal dose of the prepared NEIG a and b respectively.



Table 2. Mean CP of LAS at different time intervals following administration of the prepared NEIG a, NEIG b, and the oral AQS as a single dose.
Time (h)	Mean-Cp ORAL-AQS	Mean-Cp IN-NEIG a	Mean-Cp IN-NEIG b
0.25	909.15± 27.3	6986.65±209	5895.2± 177
0.5	1169.7± 35	7618±228	7283.9± 218
0.75	2363.98±71	8066±242	7737.75± 232
1	3114.8±93	7330±219	7975.67±239
2	4181.09±125	4990±150	4215.4± 126
3.6	648.23± 19	1742±52.3	1177.07±35
5	187.34± 5.6	236.5±7	188.72± 5.6
7	108.5± 3	190.85±5.7	126.52± 4
12	72.36± 2	105.28± 3	69.24±2
19	-----------	77.8±2.3	38.99±1.1

n=6 (mean ±SD)

The pharmacokinetic study results revealed that intranasal application of LAS as NEIG a and b can significantly (p<0.05) modify its pharmacokinetic profile and can increase its bioavailability by more than 2.5 folds in comparison with the oral LAS AQS (control) as shown in Table 3 and Figure 4 listed below.

Table 3. Pharmacokinetics parameters of a single intranasal dose of LAS as optimized NEIG a, NEIG b, and single oral AQS (8%LAS).
Kinetic parameters	Oral-LAS (control)	Intranasal LAS (NEIG a)	Intranasal LAS (NEIG b)
Cmax(ng/ml)	4181.09±125	8066±242	7975.67±239
T max(h)	2±0.2	0.75±0.05	1±0.05
AUC t0-∞(ng.h/ml)	8852.67±266	19616.86±589	17912.36±537
Ke(h-)	0.125±0.002	0.116±0.001	0.113±0.001
T 0.5 (h)	5.544± 0.17	5.97± 0.18	6.1± 0.18

n=6 (mean ±SD)

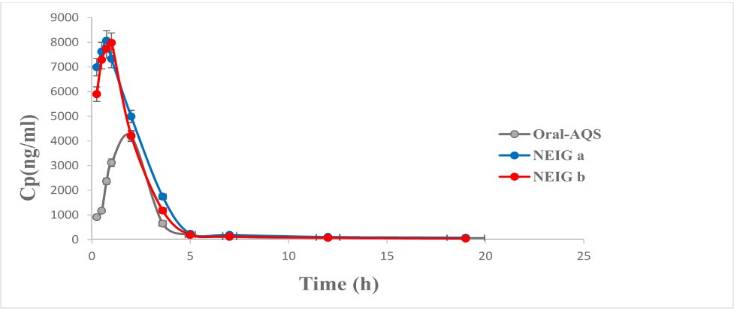

Figure 4. The profile of Mean Cp versus time during the pharmacokinetic experiment applied on 18 rabbits each 6 were given a single dose of LAS as NEIG a, the other 6 were given NEIG b (both given intranasally), and the last group received aqueous drug suspension AQS (given orally).

The results in Table 3, and Figure 4 illustrated that the profile of the Mean Cp versus time which was constructed on a semilog paper for the optimized LAS formulas as NEIG a and b are superimposed with no significant difference (p<0.05), both formulas achieve rapid onset of action (lower T max value=0.75 and 1) with higher extent of LAS absorption (C max=8066 and 7975.67 ng/ml) accompanied by the higher value of total AUC (19616.86 and 17912.36 ng. h/ml) respectively.

The new intranasal formulations both gain the goal of increasing the bioavailability of LAS compared with a lower F value when administered orally.

The in vivo results are comparable with the invitro release and ex vivo permeation of the selected two prepared formulas of LAS as NEIG a and b which exert 100% permeation and are released within 20 and 35 min respectively compared with only 30% permeation and released of the traditional AQS during the same time interval so these optimized formulas given intranasally will be significantly better(P<0.05) permeated, released and bioavailable than the AQS given orally.

Increased permeability is a result of the physicochemical characteristics of the drug molecule known as NEIG, which include reduced particle size, high lipoidal characteristics, and the presence of CE, LR, and TC [38].

Oligosaccharide chains in the mucus membrane include a high proportion of carboxyl groups that form hydrogen bonds with them, creating a dense network between the polymer and mucus membrane, increasing the residence time of dug in the nasal mucosa when in situ gelling agents are present [39-41].

Finally, switching the route of administration accompanied by the use of advanced nanotechnology together with an in-situ gelling formula helps to get acceptable, effective, safe, bioavailable formulas with the best patient compliance.

The two successful formulas of LAS NEIG a and NEIG b will be entered into a safety study to select one of them to be the gold one ready to be subjected to clinical study.

Conclusion

The most efficient new drug delivery technology was used for the formulation of LAS as NEIG a and b using two different pseudo ternary systems for formulation of NE, then including of pH-sensitive gelling agent (Carbopol 934).

This novel combination of NE with in situ gelling polymer attains the goal of increasing the bioavailability of LAS which is about 40% via the oral route to approximately 100% via the nasal route through the use of this nanosized lipophilic particles which achieve rapid permeation and released of LAS accompanied with increasing the residence time in the nasal cavity which considered as the main challenge for intranasal preparation.

The LAS's bioavailability was increased in comparison to the AQS by more than two and a half times.

The main flaws of the commonly used orally market pill might be fixed by using this mixture. In fact, it won't eliminate the necessity for future clinical testing of this innovative recipe, which might provide other crucial information to physicians.

Acknowledgments: The authors would like to thank the Department of Pharmaceutics, College of Pharmacy, University of Baghdad for the completion of the research.

Conflict of interest: None

Financial support: None

Ethics statement: The University of Baghdad-College of Pharmacy Research Ethics Committee has reviewed the responses to comply with the ethical principles of the International Ethical Guidelines for Health-related Research with the approval number: REACUBCP2542022A.

References

1. Beauchene JK, Levien TL. Lasmiditan: Acute migraine treatment without vasoconstriction. A review. J Pharm Technol. 2021;37(5):244-53.
2. Francescangeli J, Karamchandani K, Powell M, Bonavia A. The serotonin syndrome: From molecular mechanisms to clinical practice. Int J Mol Sci. 2019;20(9):2288.
3. Fiedler DS. Pharmacokinetics, pharmacodynamics and drug-drug interactions of new anti-migraine drugs-lasmiditan, gepants, and calcitonin-gene-related peptide (CGRP) receptor monoclonal antibodies. Pharmaceutics. 2020;12(12):1180.
4. Srivastava R, Srivastava S, Singh SP. Thermoreversible in-situ nasal gel formulations and their pharmaceutical evaluation for the treatment of allergic rhinitis containing extracts of Moringa olifera and Embelia ribes. Int J Appl Pharm. 2017;9(6):16-20.
5. Hadi AS, Ghareeb MM. Rizatriptan benzoate nanoemulsion for intranasal drug delivery: Preparation and characterization. IJDDT. 2022;2(2):546-52.
6. Azman M, Sabri AH, Anjani QK, Mustaffa MF, Hamid KA. Intestinal absorption study: Challenges and absorption enhancement strategies in improving oral drug delivery. Pharmaceuticals (Basel). 2022;15(8):975.
7. Tucker C, Tucker L, Brown K. The intranasal route as an alternative method of medication administration. Crit Care Nurse. 2018;38(5):26-31.
8. Che Marzuki NH, Wahab RA, Abdul Hamid M. An overview of nanoemulsion: Concepts of development and cosmeceutical applications. Biotechnol Biotechnol Equip. 2019;33(1):779-97.
9. Abdulbaqi MR, Rajab NA. Preparation, characterization and ex vivo permeability study of transdermal apixaban O/W nanoemulsion-based gel. IJPS. 2020;29(2):214-22.
10. Ugwoke MI, Verbeke N, Kinget R. The biopharmaceutical aspects of nasal mucoadhesive drug delivery. J Pharm Pharmacol. 2001;53(1):3-21.
11. Bailey AM, Baum RA, Horn K, Lewis T, Morizio K, Schultz A, et al. Review of intranasally administered medications for use in the emergency department. J Emerg Med. 2017;53(1):38-48.
12. Vigani B, Rossi S, Sandri G, Bonferoni MC, Caramella CM, Ferrari F. Recent advances in the development of in situ gelling drug delivery systems for non-parenteral administration routes. Pharmaceutics. 2020;12(9):859.
13. Pires PC, Rodrigues M, Alves G, Santos AO. Strategies to improve drug strength in nasal preparations for brain delivery of low aqueous solubility drugs. Pharmaceutics. 2022;14(3):588.
14. Chakrabarty S, Nath B. Oral in-situ gel for periodontitis: A review. World J Pharm Res. 2018;7(11):262-76.
15. Ashoor JA, Ghareeb MM. Preparation and in vitro, evaluation of methotrexate mucoadhesive nanogel proposed for cervical cancer therapy. Karbala J Pharm Sci. 2020;1(20).
16. Huang C, Wang C, Zhang W, Yang T, Xia M, Lei X, et al. Preparation, in vitro and in vivo evaluation of nanoemulsion in situ gel for transnasal delivery of traditional chinese medicine volatile oil from ligusticum sinense oliv. cv. Chaxiong. Molecules. 2022;27(21):7644.
17. Hosny KM, Banjar ZM. The formulation of a nasal nanoemulsion zaleplon in situ gel for the treatment of insomnia. Expert Opin Drug Deliv. 2013;10(8):1033-41.
18. Bhalerao H, Koteshwara KB, Chandran S. Design optimization and evaluation of in situ gelling nanoemulsion formulations of brinzolamide. Drug Deliv Transl Res. 2020;10:529-47.
19. Fadhel AY, Rajab NA. Tizanidine intranasal nanoemulsion in situ gel: Formulation and in-vivo brain study. J Pharm Negat. 2022;13(2):582-91.
20. Maraie NK, Almajidi YQ, Alshadher A. Absolute and relative bioavailability study for the newly developed nasal nanoemulsion in situ gel of ondansetron HCl in comparison to conventionally prepared in situ gel and intravenous dosages forms. Int J Appl Pharm. 2018;10(5):105-9.
21. Griffin RJ, Avery E, Xia CQ. Predicting approximate clinically effective doses in oncology using preclinical efficacy and body surface area conversion: A retrospective analysis. Front Pharmacol. 2022;13:830972.
22. Wickham KS, Baresel PC, Marcsisin SR, Sousa J, Vuong CT, Reichard GA, et al. Single-dose primaquine in a preclinical model of glucose-6-phosphate dehydrogenase deficiency: Implications for use in malaria transmission-blocking programs. Antimicrob Agents Chemother. 2016;60(10):5906-13.
23. Labastida-Ramírez A, Rubio-Beltrán E, Haanes KA, Chan KY, Garrelds, IM, Johnson KW, et al. Lasmiditan inhibits calcitonin gene-related peptide release in the rodent trigeminovascular system. Pain. 2020;161(5):1092.
24. Nair AB, Jacob S. A simple practice guide for dose conversion between animals and humans. J Basic Clin Pharma. 2016;7:27-31.
25. Jacob S, Nair AB, Morsy MA. Dose conversion between animals and humans: A practical solution. Indian J Pharm Educ Res. 2022;56:600-7.‏
26. Lima-Oliveira G, Lippi G, Salvagno GL, Picheth G, Guidi GC. Laboratory diagnostics and quality of blood collection. J Med Biochem. 2015;34(3):288-94.
27. Kulkarni P, Karanam A, Gurjar M, Dhoble S, Naik AB, Vidhun BH, et al. Effect of various anticoagulants on the bioanalysis of drugs in rat blood: Implication for pharmacokinetic studies of anticancer drugs. Springerplus. 2016;5:1-8.‏
28. Kumar LS, Swamy PY. RP-HPLC method development and validation of lasmiditan in bulk drug and pharmaceutical dosage form. J Emerg Technol Innov Res. 2021;8(12):54-61.
29. Gabrielsson J, Weiner D. Non-compartmental analysis. Methods Mol Biol. 2012;929:377-89.
30. Devkar TB, Tekade AR, Khandelwal KR. Surface-engineered nanostructured lipid carriers for efficient nose-to-brain delivery of ondansetron HCl using Delonix regia gum as a natural mucoadhesive polymer. Colloids Surf B. 2011;22:143-50.
31. Kumar R, Puppala K, Lakshmi V. Optimization and solubilization study of nanoemulsion budesonide and constructing pseudo ternary phase diagram. Asian J Pharm Clin Res. 2019;12(1):551-3.
32. Gibaldi M. Biopharmaceutics and clinical pharmacokinetics. 4th ed. Lea and Febiger: Malvem, PA; 1991. p. 23-8.
33. Shargel L, Pong SW, Yu ABC. Applied biopharmaceutical and pharmacokinetics. 5th ed. McGraw-Hills: USA; 2004. p. 56-8.
34. Reddy CS, Babu CNN, Tatavarti BK, Vijaya N, Anna VR. Development of a stability-indicating HPLC method for Lasmiditan and its process-related impurities with the characterization of degradation products by LC-MS/MS. J Chem Metrol. 2023;17(1):52.
35. Abdulqader AA, Rajab NA. Bioavailability study of posaconazole in rats after oral poloxamer P188 nano-micelles and oral posaconazole pure drug. J Adv Pharm Educ Res. 2023;13(2):140-3.
36. Salih OS, Al-Akkam EJ. Pharmacokinetic parameters of ondansetron in rats after oral solution and transdermal invasomes gel: A comparison study. J Adv Pharm Educ Res. 2023;13(1):116-21.
37. Kurji HA, Ghareeb MM, Zalzala MH, Numan AT, Hussain SA. Serum level profile and pharmacokinetic parameters of single oral dose of metronidazole in type II diabetic patients. Iraqi J Pharm Sci. 2011;20(1):14-8.
38. Dhahir RK, Al-Nima AM, Al-Bazzaz FY. Nanoemulsions as ophthalmic drug delivery systems. Turk J Pharm Sci. 2021;18(5):652-64.
39. Charoo A, Kohli K, Ali A. Preparation of in situ forming ophthalmic gels of ciprofloxacin hydrochloride for the treatment of bacterial conjunctivitis: In vitro and in vivo studies. J Pharm Sci. 2003;92(2):407-13.
40. Al Kufi HK, Kassab HJ. Formulation and evaluation of sustained release sumatriptan mucoadhesive intranasal in-situ gel. Iraqi J Pharm Sci. 2019;28(2):95-104.
41. Subramanian DA, Langer R, Traverso G. Mucus interaction to improve gastrointestinal retention and pharmacokinetics of orally administered nano-drug delivery systems. J Nanobiotechnology. 2022;20(1):362.
