Introduction

In order to increase the solubility and improve the stability and oral biological availability of poorly water-soluble compounds, several strategies have been suggested. One is using nano-micelles that have emerged as efficient tools for the encapsulation of drugs with low aqueous solubility [1-4]. The core–shell structure of micelles prevents the penetration and presence of water in its inner core. This key feature of micelles creates a suitable environment for the encapsulated drug in comparison with the free drug [5]. Some advantages presented by micelles as drug carriers include easy development, affordable costs, facilitated transport of cargo across biological barriers, improved solubility in aqueous media including the unstirred water layer of the intestine, a controlled release profile, and protection against degradation [6]. The bioavailability of class II drugs and the desired clinical efficacy. Increased apparent solubility in water was achieved through the formulation of nano-micelles using large molecular weight molecules that self-assembled into vesicle-like structures with an outer hydrophilic shell and an inner lipophilic core [7, 8]. Cilnidipine is a BCS Class-II substance with a very low solubility and a high permeability [9]. CLD has an extremely low oral bioavailability in humans (13%). It also exhibits low water solubility and slow dissolution [10]. CLD with half-life (2.5 h) [11]. Both L-type voltage-gated calcium channels in vascular smooth muscle and N-type calcium channels in sympathetic nerve terminals that supply the blood vessels are blocked by cilnidipine. Ceasing the activity of N-type calcium channels could potentially serve as a novel treatment strategy for cardiovascular disorders [12-15]. Administration of cilnidipine, which shows a reduction in cardiovascular outcomes, reduced the incidence of cardiovascular disease and target organ damage [16]. This research aims to enhance the oral bioavailability of cilnidipine by formulating it into a nano-micellar (NM) dosage form, thereby improving its dissolution rate.

Materials and Methods

CLD and TPGS were purchased from Hangzhou Hyper Chemicals Limited. SLP was purchased from BASF in Germany. Tween-80 and Poloxamer-188 were purchased from Fluka Chemical. Methanol was purchased from Loba Chemie Pvt. Ltd., India. Deionized water (DW) and the other chemicals and reagents were of analytical grade [17, 18].

Method of preparation of CLD -NM

Twenty mg of CLD was dissolved in 5 mL of an organic solvent (absolute methanol). The required quantities of each polymer (SLP, TPGS, Tween 80, and poloxamer 188) according to the specified ratios [(1:2), (1:4), (1:6), (1:8), (1:4:1), and (1:4:2)] were dissolved in 5 mL of the same organic solvent. Both solvents were mixed and stirred in a round-bottom flask over a magnetic stirrer at 45°C for 15 minutes. The solvent mixture was then evaporated for 10 minutes at 60 °C using a rotary evaporator (Bibby Scientific Limited - UK). Afterward, the flask was left overnight to allow any remaining solvent to drain. A magnetic stirrer at 300 rpm was used for two hours to hydrate the film by adding 10 mL of deionized water (DW) [19, 20].

Table 1 shows that thirteen formulas were prepared, seven of which are single polymeric NM, and the others are mixed NM. All were subjected to in-vitro Characterization and evaluation.

Characterization of CLD nano-micelles micelles size determination

The micelle size, polydispersity index (PDI), and zeta potential of the diluted formulation were determined using a Zetasizer (Malvern Instruments Ltd, United Kingdom) [21].

Entrapment efficiency and drug loading capacity

Drug loading capacity (DL) and entrapment efficiency (EE) were computed indirectly. An ultrafiltration tube (Amicon MWCO 10000 D, Millipore Co., USA) was filled with a polymeric micelle dispersion, and the tubes were centrifuged for 30 minutes at 6000 rpm. Using the calibration curve for CLD in methanol and UV spectrophotometry with a wavelength of 242 nm, the amount of unincorporated CLD in the supernatant was measured. The unloaded CLD may be deducted from the first added CLD in order to get the loaded CLD quantity. The (EE%) and (DL%) were then computed using Eqs. 1 and 2 [22, 23]. This technique guarantees precise measurement of drug loading and encapsulation in nanomicellar systems.

Determination of the CLD solubility in different media

After adding an excess amount of CLD to a fixed volume of each PBS (pH 6.8), methanol, and distilled water, the mixture was incubated for 48 hours at 37°C in a shaking water bath to reach equilibrium. The suspension was centrifuged for 30 minutes at 6000 rpm and then passed through a 0.45 μm pore membrane filter. The calibration curve of CLD in each of the media mentioned above was used to determine the concentration of CLD in the filtrate. The experiment was conducted in three duplicates, and the mean ±SD was determined [22].

In-vitro release of CLD from the prepared NM dispersion

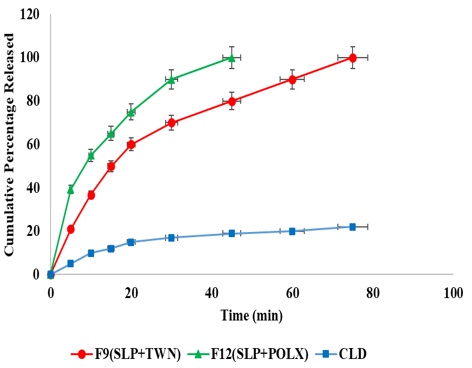

The in-vitro release profile of CLD-loaded nano micelles (CLD-NMs) was evaluated using a dialysis membrane bag (cellulose membrane with a molecular weight cutoff of 8,000–14,000 Da) and phosphate-buffered saline (PBS at pH 6.8, containing 1% SLS) as the release medium. Before the experiment, the dialysis bag was soaked overnight in PBS (pH 6.8). Then, 2.5 mL of the CLD-NM dispersion, containing the equivalent of 5 mg of CLD, was placed inside the bag, as well as 2.5 mL containing only 5 mg of pure CLD drug suspended in DW. Each bag was then repeatedly submerged in 900 mL of release medium maintained at 37°C and stirred at 100 rpm using a USP dissolution apparatus type II, following the FDA's recommended dissolution protocol for CLD oral tablets. Samples of 5 ml were withdrawn at predetermined intervals (5, 10, 15, 30, 45, 60 min). An equal volume of fresh dissolution medium was replenished. The amount of CLD released was measured spectrophotometrically at 242 nm [24].

Selection of the optimum formula

The best formula was chosen based on the characterization's in-vitro results (particle size, PDI, EE%, and DL%), as well as the cumulative percentage released of CLD over 180 minutes. The proposed formula was further studied, including morphological determination using field-emission scanning electron microscopy (FESEM) and differential scanning calorimetry (DSC), to confirm that AMS was entrapped within the generated nanomaterial (NM). In addition, FTIR analysis was performed on the improved formula to ensure that the medication and excipient are compatible.

Ex-vivo intestinal absorption – non-everted sac method

Ex-vivo investigations were performed using the non-everted intestinal sac technique on male Wistar rats weighing 250–300 g. The University of Baghdad's College of Pharmacy provided the animals for its animal house. The Research Ethics Committee of the University of Baghdad College of Pharmacy formally approved the study. The animal was sedated with ethyl ether, allowed to fast for the entire night with unfettered access to water, and had a 4 to 5 cm longitudinal abdominal incision performed. After removing the small intestine, the mesentery was manually scraped and then thoroughly cleaned out with cold normal saline solution using a blunt-ended syringe. One milliliter of the selected NM, containing two milligrams of medication, was placed in each of the equal-length, 10-cm-long sacs made from clean intestine, which were then knotted at the other end to form a sac [25]. Two milligrams of pure CLD powder suspended in 2.5 mL of deionized water (DW) was used as a control [26-29]. The duodenum was 2.21 ± 0.04 mm in diameter [30]. At 37°C ± 2, the sac was submerged in 300 mL of phosphate-buffered saline solution (pH 7.4) after being attached to the paddle of a dissolution device type II. At intervals of 5, 10, 15, 30, 45, 60, 90, and 120 minutes, samples of a 5 mL solution were withdrawn and replaced with a phosphate-buffered saline solution (pH 7.4). Using a UV spectrophotometer and a calibration curve of CLD in phosphate-buffered saline (pH 7.4) at an absorption wavelength of 242 nm, the drug concentration in the aliquot portion was assessed. The research was carried out in triplicate, and the data was analyzed using the mean ± SD. The permeability coefficient was determined using the following equations [31]:

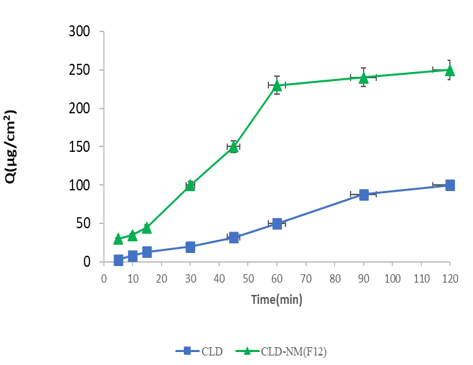

The permeation flow (F) was calculated by calculating the slope of the linear section of the plot, where (r) represents the intestinal radius (cm) and (h) represents the intestinal segment length (cm). The flux reflects the permeability coefficient (PC, cm/min) (F, µg/min/cm²), intestinal sac area (SA, cm²), and initial drug concentration (C₀).

Morphological characterization

Field emission scanning electron microscope(FESEM)

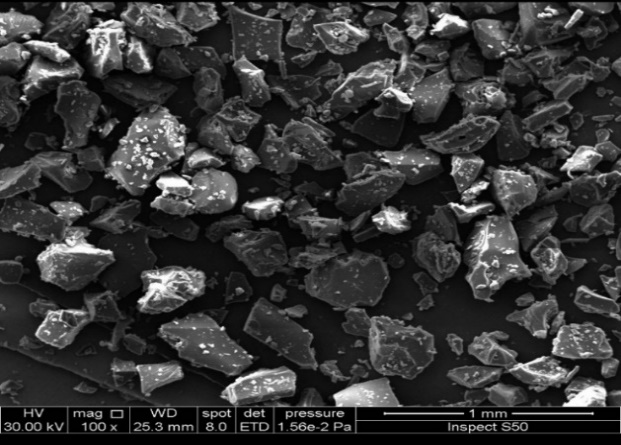

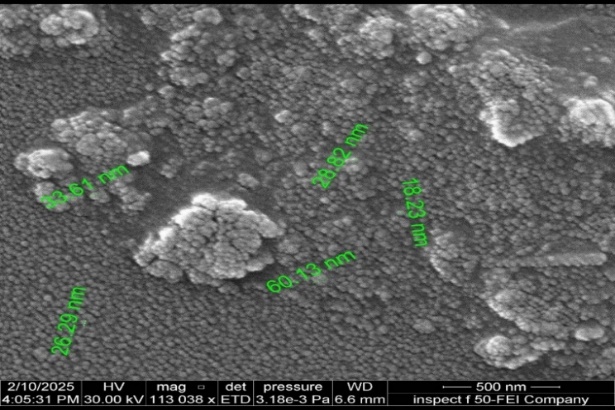

FESEM was utilized to study the morphology of the CLD nano-micelles formulation (FESEM S-4160, Hitachi, Japan). Sample preparation is an essential stage in the imaging of samples with a Field Emission Scanning Electron Microscope (FESEM). The quality of the sample preparation substantially determines the quality of the pictures obtained from the FESEM. The sample preparation comprises carefully collecting nano-micelles to avoid contamination or damage, sample fixation in which the structural integrity of the formula is preserved, and dehydration of the formula to remove water from nano-micelles. Critical point drying is a technique used to remove the solvent from the formula without damaging the morphology of the nano-micelles. The formula is mounted on a stub using a conductive adhesive carbon tape and coated to prevent charging and improve image quality. The nano-micelles formula was coated with a conductive material, platinum, and finally imaged; the nano-micelles formula is now ready to be imaged using the FESEM [21].

Crystallinity specification

Differential scanning calorimetry (DSC)

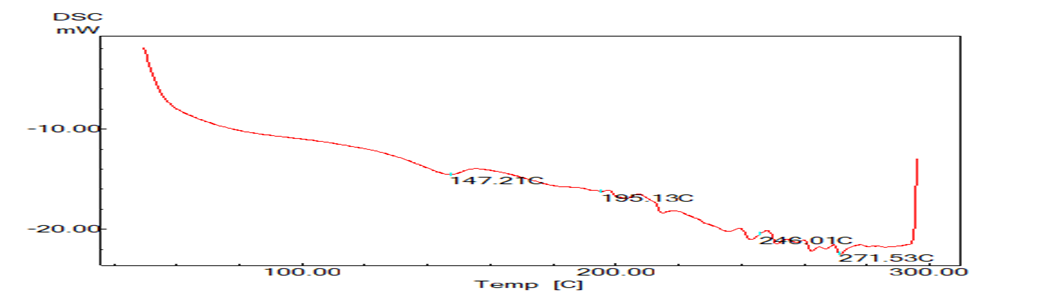

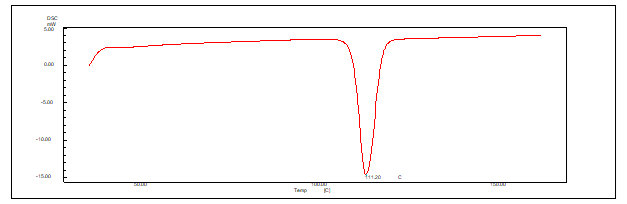

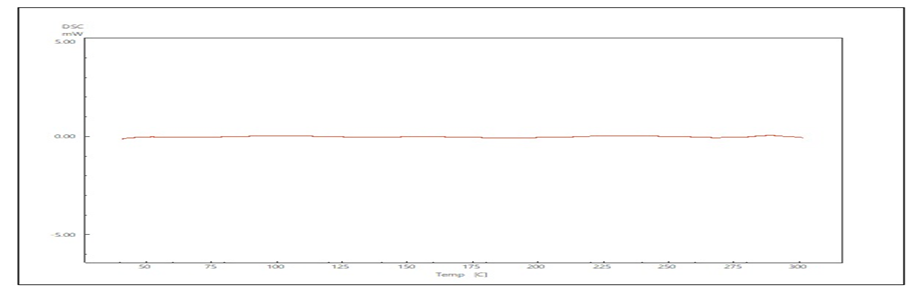

The formulation was subjected to a DSC thermal analysis of the CLD, the physical mixture and the optimum CLD-NM formula. Under a flow of nitrogen gas, each sample was carefully weighed and stored in aluminum pans. Then, they were heated at a rate of 10°C/min and cooled at a rate of 40°C/min. In the research, an empty aluminum baking pan served as a control [32].

Drug- excipient compatibility study

Fourier transform infrared spectroscopy (FTIR)

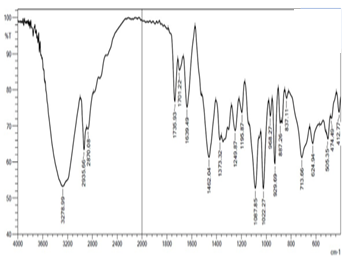

FTIR spectroscopy in conjunction with the attenuated total reflectance (ATR) approach was utilized to detect any potential contact or complexation between the active ingredient and selected excipients, as well as AMS-excipient compatibility. CLD, in the form of mined powder with the selected CLD-NM formulae, was introduced directly into the crystal area without prior processing. The pressure arm was then placed above the sample and scanned throughout a wavelength range of 4000 - 400 cm⁻¹ [33].

Statistical analysis

The results of the experiments are presented as the mean SD of triplicate models, and the significance of the observed changes in the applied components was determined using one-way analysis of variance (ANOVA) at the 0.05 level of significance [34].

Results and Discussion

Effect of polymer type and concentration on the In-vitro characterization of ANM-NM

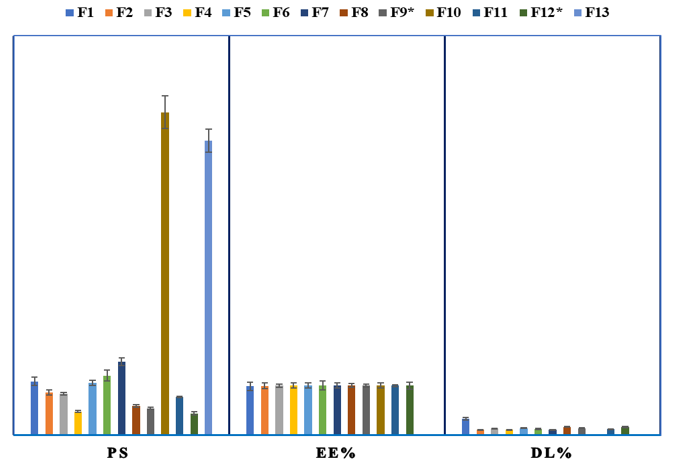

It is evident from the CLD-NM characterization results in Table 2 that a direct decrease (significantly decreased P<0.05) in particle sizes (108.1 ± 0.6, 85.28 ± 0.4, 83.36 ± 0.6, and 47.82 ± 0.4, respectively) is linked to increasing the concentration of SLP from 1:2, 1:4, 1:6, and 1:8. Particle size and PDI values are significantly impacted by SLP concentration as it rises from 0.4% w/v (F1) to 1.6% w/v. The hydrophobic tails of many surfactant molecules combine to form an oil-like core, which is a representation of the surfactant action of SLP and results in micelle characteristics. This core's most stable form made no touch with water. Because of its amphiphilic nature, SLP has been shown to form self-assembled spherical micelles in an aqueous environment above a CMC of 7.6 mg/L, with the polyethylene glycol backbone acting as the hydrophilic component and the vinyl caprolactam/vinyl acetate side chains acting as the lipophilic component. As a result, the solubility of poorly soluble medications can be greatly increased. In the current investigation, all SLP dispersion concentrations tested were over the CMC [35].

The PDI of the CLD-NM dispersion prepared with SLP is between 0.161±0.002 to 0.2387±0.001, which indicates the nano micelles are very uniform in size, with almost no variation between particles, i.e., a highly monodispersed system, which was very important to ensure predictable drug release and improve stability of the formulations [36].

The findings of particle size estimate for the formulations made with TPGS show that the average diameter of NM increases as the TPGS concentration increases.  When the concentration of TPGS increases from 0.8% w/v (F1) to 1.6% w/v (F5 - F7), the influence on particle size is significant but not on PDI values.  The same result was seen with SLP/TPGS silymarin nanomicelles; increasing the concentration of TPGS resulted in larger particle sizes [37].  Figure 1 and Table 2 show that EE% and DL% were measured for all of the prepared mixed polymeric NMs, ranging from F1 to F7, with no significant changes (P>0.05) and a high value for these two parameters.

Effect of polymer combination on the in-vitro characterization of ANM-NM

Based on the in vitro characterization of the SLP-NM and TPGS -NM dispersions (F1 –F7), the drug-polymer ratio (1:4) was selected for the preparation of mixed polymeric NM via (1:4:1) and (1:4:2) ratios with SLP- TWN  80 (F8 and F9), TPGS - TWN  80 (F10 and F11), SLP- POL-188 (F12), and TPGS - POL-188 (F13), as declared in Figure 1 and Table 2 indicate that particle size, PDI, EE% and DL% were measured for all the prepared mixed polymeric NMs, showing no significant changes (P > 0.05) in EE%, and DL%, except for F10 and F13, which were excluded from this test due to their significant high particle size and PDI. The particle size of SLP/TWN 80 nanomicelles is smaller than that of SLP/TPGS. SLP has amphiphilic characteristics due to copolymer grafting. The backbone of polyethylene glycol stands in for the hydrophilic component, while the side chains of vinyl caprolactam and vinyl acetate represent the hydrophobic component. The hydrophobic segments of SLP constitute the central region of the micelle, which acts as a microenvironment for the inclusion and integration of the lipophilic molecules. The inclusion of TPGS in nanomicelles has an adverse impact. This phenomenon is likely attributed to the fact that TPGS can reduce the hydrophobic contacts between the polymer chains within the micellar core [38]. If there is insufficient affinity between the drug and the copolymer within the core, the drug will not be effectively loaded into the micelle. As a result, the likelihood of interactions between hydrophilic and hydrophobic segments increases, causing changes in the hydrophobic nature of the core and, subsequently, affecting its ability to encapsulate the drug. This can clarify the phenomenon of particle size enlargement with increasing TPGS [39, 40]. Oral administration of nanomicelles with an average hydrodynamic diameter below 100 nm can enhance intestinal medication absorption [37].

Micelles having particle sizes of 100 nm or smaller and acceptable technological parameters were chosen for further study. The particle size was reduced for F9 and F11, which were made using a drug-mixed polymeric ratio of 1:4:2, as compared to F8 and F10 with a ratio of 1:4:1, as shown in Table 2 and Figure 1, so the ratio of 1:4:2 was chosen for further formulations. The effect of POL-188 as a copolymer was demonstrated in the measurement of particle size for F12, a nonionic surfactant with a reasonably high HLB that produced nanomicelles with the smallest size when compared to the other formulations [41].
